Category Archives: Presto ECOA - Page 2

An ECOA Lift Table that could withstand seismic variations

Posted by on November 3, 2016 Comments Off on An ECOA Lift Table that could withstand seismic variations

seismic

 ECOA Lift produced a lift table that could withstand seismic variations. This customer needed a lift table that could withstand seismic variations (earth quakes) and remain stable and safe. The material that is on the lift is very toxic and dangerous. The operation required the material to be loaded on a carrier and the carrier was rolled on to the lift and raised to a height that allowed to material to be moved off the lift to its final destination.

The red cylinders control the added legs used for stability in case of ground vibrations. The lift is raised and the legs are then moved to a vertical position and aligned with cup receivers and lowered it to those receivers for security.
The operating system can not operate unless all moving parts are in there correct position and only then will the lift operate. If at any time any of the movable components become out of position the lift will immediately stop until the situation is corrected.

Because of the proximity to a very hot area the paint and components had to be of special material to resist the heat.

Now that’s a long lift, ECOA Lifts

Posted by on November 3, 2016 Comments Off on Now that’s a long lift, ECOA Lifts

long For 30 years ECOA has been building extraordinary lifts for customers that have specific applications. Although this unit is in excess of 40 feet long it is not the longest unit that ECOA has ever built. Customer requirements in the past have caused ECOA to send lifts in two sections to be assembled on location.

Presto Lifts New Fully Powered PowerJack

Posted by on April 26, 2016 Comments Off on Presto Lifts New Fully Powered PowerJack

Presto Lifts PowerJak 3Presto Lifts introduces their new PowerJak™ powered pallet truck.

PowerJak™ Electric Pallet Trucks feature powered lift and powered drive for effortless transport of pallet loads. They are more convenient and easier to use than hand pallet trucks and far more economical than ride on devices.

Two Models of PowerJak Electric Pallet Trucks are available. The PPJ3000 is a standard-duty 3,000 lb. capacity unit and the PPJ4500 is heavy-duty 4,500 lb. capacity unit.

  • Ergonomic handle with redundant controls for left- or right-hand use
  • Variable speed forward and reverse with Turtle Speed
  • Automatic brake engages to halt travel if handle is released
  • Heavy-duty reinforced steel forks have 24″ load center
  • 24 Volt drive and lift motors provide ample power
  • Dual, articulating casters roll easily on uneven surfaces
  • Battery indicator provides charge status at a glance
  • Hour meter simplifies maintenance scheduling

Presto Lifts PowerJak 1 Presto Lifts PowerJak 2

Presto Lifts Introduces the All New P3-SPRING

Posted by on January 26, 2016 Comments Off on Presto Lifts Introduces the All New P3-SPRING

Presto P3-SpringINTRODUCING THE ALL NEW PRESTO P3-SPRING FULLY AUTOMATIC PALLET POSITIONER

P3-SPRING Features

  • Load height adjusts automatically
  • Spring actuated – No power required
  • Low-friction turntable
  • Efficient Compact Design
  • Stable base – No lagging required
  • Fork pockets for easy relocation
  • Includes; Set of 3 calibrated springs
  • Handles loads from 400 lbs to 4,500 lbs

The P3-SPRING Level Loader from Presto Lifts improves the efficiency of manual pallet loading and unloading jobs by eliminating bending, stretching, and walking around the pallet.

Heavy-duty calibrated springs lower or raise pallets as boxes are added or removed. The anti-friction turntable top lets workers stand in the same position throughout the loading and unloading process.

The P3-SPRING is designed so that its base and all components fit within the diameter of the turntable ring. This allows workers to stand up close to the unit at any position around the ring with no obstructions to reach over.

Presto 70 Years

Prime Alliance Marketing’s Lines to Show at MODEX 2016 in Atlanta

Posted by on January 25, 2016 Comments Off on Prime Alliance Marketing’s Lines to Show at MODEX 2016 in Atlanta

Modex LogoPrime Alliance Marketing is going to the Modex show in Atlanta, GA in early April 2016.

Here’s a list of who we have showing and their booth numbers:

As always we hope to run into many dealers from New England at the show. Please stop into the booths and say hello.

Presto Lifts Announces a New Model LiftStik

Posted by on January 25, 2016 Comments Off on Presto Lifts Announces a New Model LiftStik

Presto New LiftStikNew LiftStik Model PLS53-150

A more compact design with a faster lifting speed and superior maneuverability.

The ideal lift for stockrooms and fast pace production areas.

LiftStik Features & Specifications:

  • Lightweight Aluminum construction
  • 150 lb. capacity
  • 4 1/2″ Lowered Platform height
  • 53″ Raised Platform height
  • Fast Lifting Speed: 4.75 inches per second
  • Choice of HDPE (Plastic or Laminated Wood Platform
  • 24V DC Power Unit with Battery & 115V charger
  • Ball-bearing wheels roll easily over any surface

See the complete line of LiftStik models here.





Presto Lifts Portable Lift Table Video

Posted by on November 30, 2015 Comments Off on Presto Lifts Portable Lift Table Video

Presto Lifts Portable Lift TablesPresto Lifts line of portable lift tables are ideal for transporting loads to and from work cells, where they can be used as work platforms or raised and lowered to facilitate load transfer to tables or benches. Choose from Manual (foot pump) or Electric  (pushbutton) configurations.

Presto Lifts High Lift Walkie Stackers Video

Posted by on November 18, 2015 Comments Off on Presto Lifts High Lift Walkie Stackers Video

Presto Lifts High Lift

Presto Lifts Announces a New Model of the LiftStik

Posted by on November 13, 2015 Comments Off on Presto Lifts Announces a New Model of the LiftStik

Presto LiftStik PLS 53-150Presto Lifts has introduced a new model for their popular LiftStik line. The new PLS 53-150’s compact design, powered lifting and superior maneuverability make the LiftStik™ Model PLS53-150 ideal for countless jobs in stockrooms, assembly areas, work cells laboratories, offices, retail stores, manufacturing, food processing and pharmaceutical facilities.

Features:

  • Lightweight aluminum construction for easy handling
  • Load is carried directly over wheels for excellent stability
  • Ergonomic handle with easy access fingertip lift switch
  • Fast lifting speed – 4.75 inches per second
  • Over 48″ of vertical travel to position loads up to 53″
  • Four swivel casters – rear castes with locks
  • Choose 17.25″ x 15.5″ wood laminated or 19.5″ x 19.5″ HDPE platform

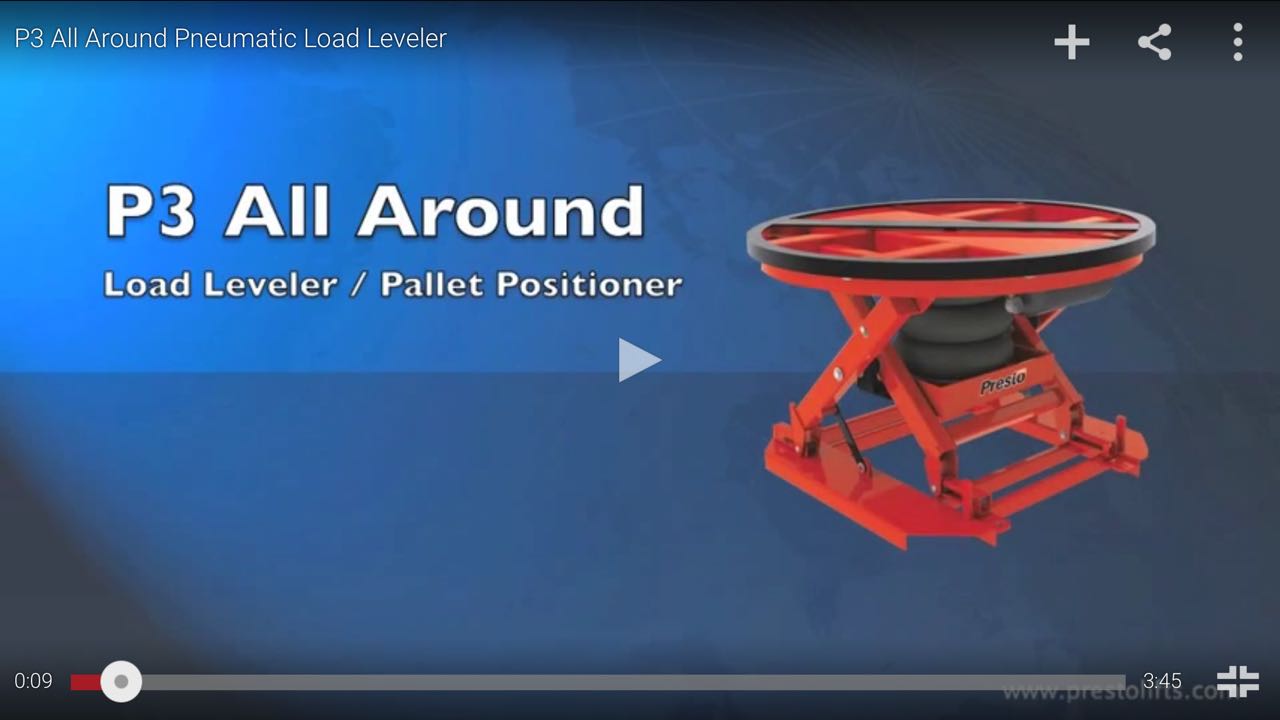

Prsto Lifts P3 All Around Video

Posted by on July 1, 2015 Comments Off on Prsto Lifts P3 All Around Video

Presto Lifts P3 All AroundPresto Lifts P3 All Around load levelers automatically adjust the height of palletized loads as boxes are added and removed. This keeps loads at a comfortable height and eliminates bending, reaching and stretching. A turntable ring allows workers to spin the load so they are always working on the near side of the pallet.
