Tag Archives: Load Leveler

Presto Lifts Introduces the All New P3-SPRING

Posted by on January 26, 2016 Comments Off on Presto Lifts Introduces the All New P3-SPRING

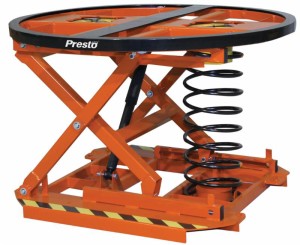

Presto P3-SpringINTRODUCING THE ALL NEW PRESTO P3-SPRING FULLY AUTOMATIC PALLET POSITIONER

P3-SPRING Features

  • Load height adjusts automatically
  • Spring actuated – No power required
  • Low-friction turntable
  • Efficient Compact Design
  • Stable base – No lagging required
  • Fork pockets for easy relocation
  • Includes; Set of 3 calibrated springs
  • Handles loads from 400 lbs to 4,500 lbs

The P3-SPRING Level Loader from Presto Lifts improves the efficiency of manual pallet loading and unloading jobs by eliminating bending, stretching, and walking around the pallet.

Heavy-duty calibrated springs lower or raise pallets as boxes are added or removed. The anti-friction turntable top lets workers stand in the same position throughout the loading and unloading process.

The P3-SPRING is designed so that its base and all components fit within the diameter of the turntable ring. This allows workers to stand up close to the unit at any position around the ring with no obstructions to reach over.

Presto 70 Years

Presto Lifts P3-AA All Around Pallet Positioner

Posted by on August 29, 2014 Comments Off on Presto Lifts P3-AA All Around Pallet Positioner

Presto Lifts P3-AA All Around Load LevelerPresto Lifts P3-AA All Around Pallet Positioner is the way to go. Easy to operate, relocatable and affordable.

Build or breakdown pallet loads with a minimum of bending or reaching.Self-Leveling Positioner automatically maintains pallet at a consistently comfortable work height. As layers of product are added or removed, a combination of a permanently mounted spring and reinforced rubber airbag assures work remains at an ergonomic height, increasing productivity. Limited lifetime warranty airbag is completely protected to prevent accidental puncture. Fully self-contained and does not require a constant air source. Simply charge the unit via single air connection (requires initial air pressure of 7 to 62 psi) and integral fork pockets allow easy movement by forklift. Complete with air pressure gauge and relief valve. 400 lbs. minimum/4500 lbs. maximum capacity. Base has wide footprint for stability and does not require unit to be lagged to the floor. 43-5/8″O.D. carousel, with 9-1/2″ lowered height and 27-3/4″ raised height.

New Presto P3 All Around Pallet Leveler

Posted by on March 7, 2013 Comments Off on New Presto P3 All Around Pallet Leveler
Presto P3 All Around Pallet Leveler

Presto P3 All Around Pallet Leveler

P3 All-Around Pallet Leveler

The new P3™ All-Around level loader from Presto Lifts is economical as well as ergonomic. Though it requires no electrical power and little maintenance, it virtually eliminates the productivity-robbing, injury-producing bending, lifting, reaching, and stretching common to pallet-loading applications. The pneumatic airbag of the P3 All-Around automatically lowers or raises a pallet as boxes are added or removed, maintaining the top layer at a convenient height. And the turntable ring (or optional solid turntable platform) at the top of the unit allows the user to spin the load so he or she can stand in the same spot throughout the loading or unloading process. The stable base of the P3 All-Around is smaller than most competing equipment. This allows the user to step even closer to the unit’s platform, further improving the ergonomic benefits of the P3. Fork pockets at the base allow for easy relocation. The P3 All-Around can accommodate loads from 400 to 4,500 lbs., depending on which of five spring packages is chosen by the customer (based on the anticipated weight and height of a fully loaded pallet). If needs change, the unit can be adapted easily in the field by changing its spring combination.



Presto Lifts P4 Load Leveler

Posted by on January 6, 2012 Comments Off on Presto Lifts P4 Load Leveler

PALLET LOAD LEVELER

A new hydraulic load leveler for use in the manual loading and unloading of pallets has been introduced by Presto Lifts Inc.

The P4™ improves worker productivity and reduces fatigue. Its platform lowers to floor height so that pallets can be placed and removed using a hand pallet truck.

In loading operations, a pallet is placed on the platform and the platform is raised by hydraulic power to its full “UP” position. As goods are loaded onto the pallet, the platform is lowered so that each succeeding tier of goods can be loaded at the same height.

When unloading pallets, the platform starts at its lowest height and is progressively raised so that each succeeding tier of goods can be removed at the same height.

When unloading pallets, the platform starts at its lowest height and is progressively raised so that each succeeding tier of goods can be removed at the same height.

The P4 can be accessed from all four sides. Units are equipped with a photoelectric toe guard which will stop downward travel if the beam is interrupted.
The units have capacities up to 4000 lbs., making them suitable for most pallet loads that can be moved with hand equipment.

Presto Lifts P3 Load Leveler

Posted by on October 24, 2011 Comments Off on Presto Lifts P3 Load Leveler

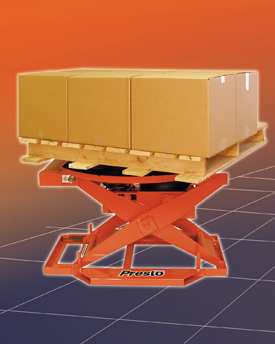

PNEUMATIC LOAD LEVELER AUTOMATICALLY ADJUSTS PALLET HEIGHT AS BOXES ARE ADDED OR REMOVED

The P3™ Pneumatic Leveler from Presto Lifts Inc. allows operators to build or break down pallet loads with a minimum of bending, reaching, stretching, or walking around. The unit automatically adjusts the height of pallets as boxes are added or removed. Height adjustment is achieved by a heavy-duty reinforced rubber airbag combined with a permanent spring.

Because the P3 is pneumatic it can handle a widely varying pallet load weights (from 400-4,500 pounds). It can be used anywhere that shop air is available.

A large turntable equipped with anti-friction bearings allows loads to be quickly and effortlessly rotated so that operators can always be working on the nearside of the pallet.

The extra-wide base means no lagging is necessary, and fork pockets allow the unit to be easily relocated by a fork truck or stacker.
